Municipal Sweeper MT1
Manufacturer: Metal-Technik

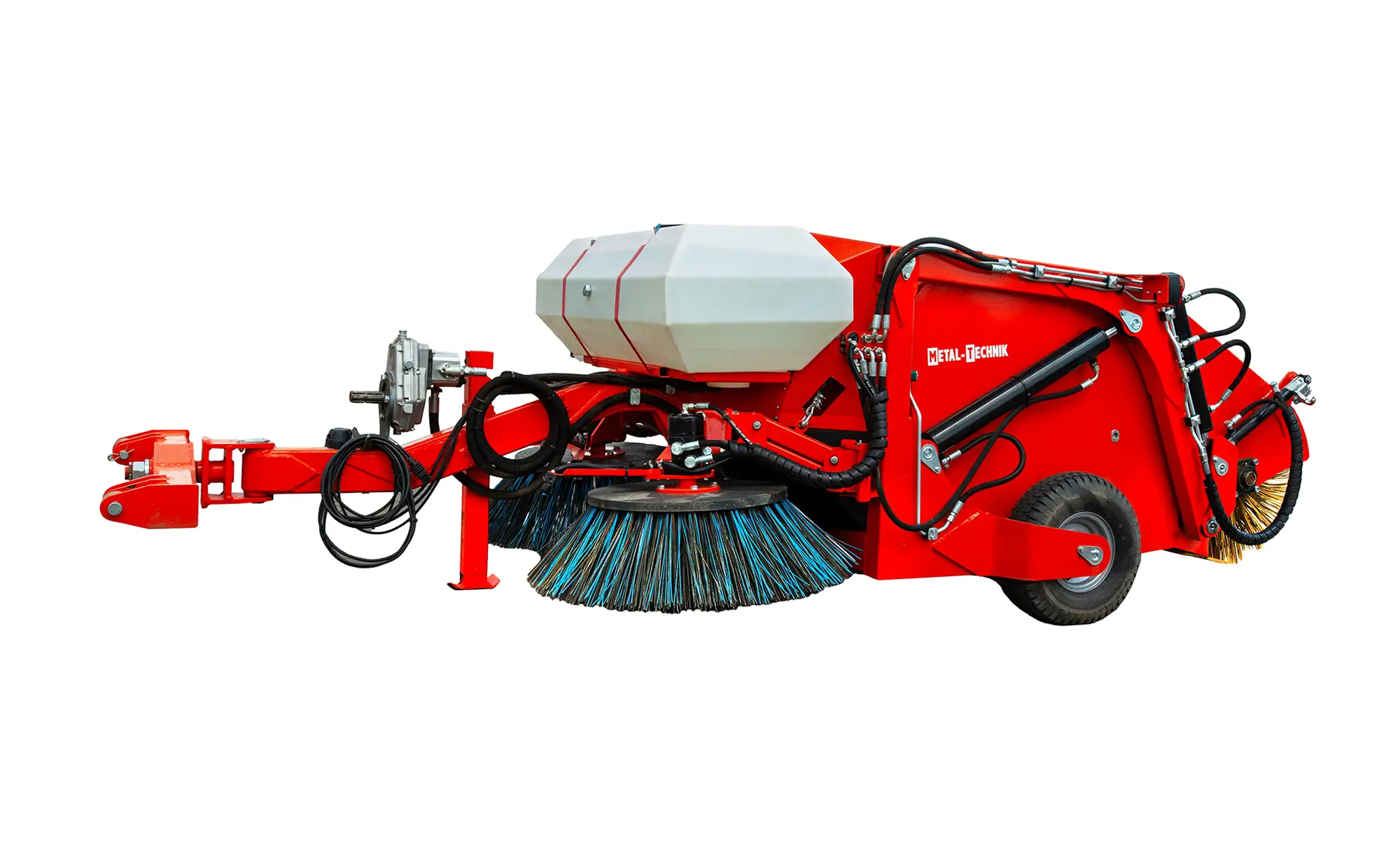

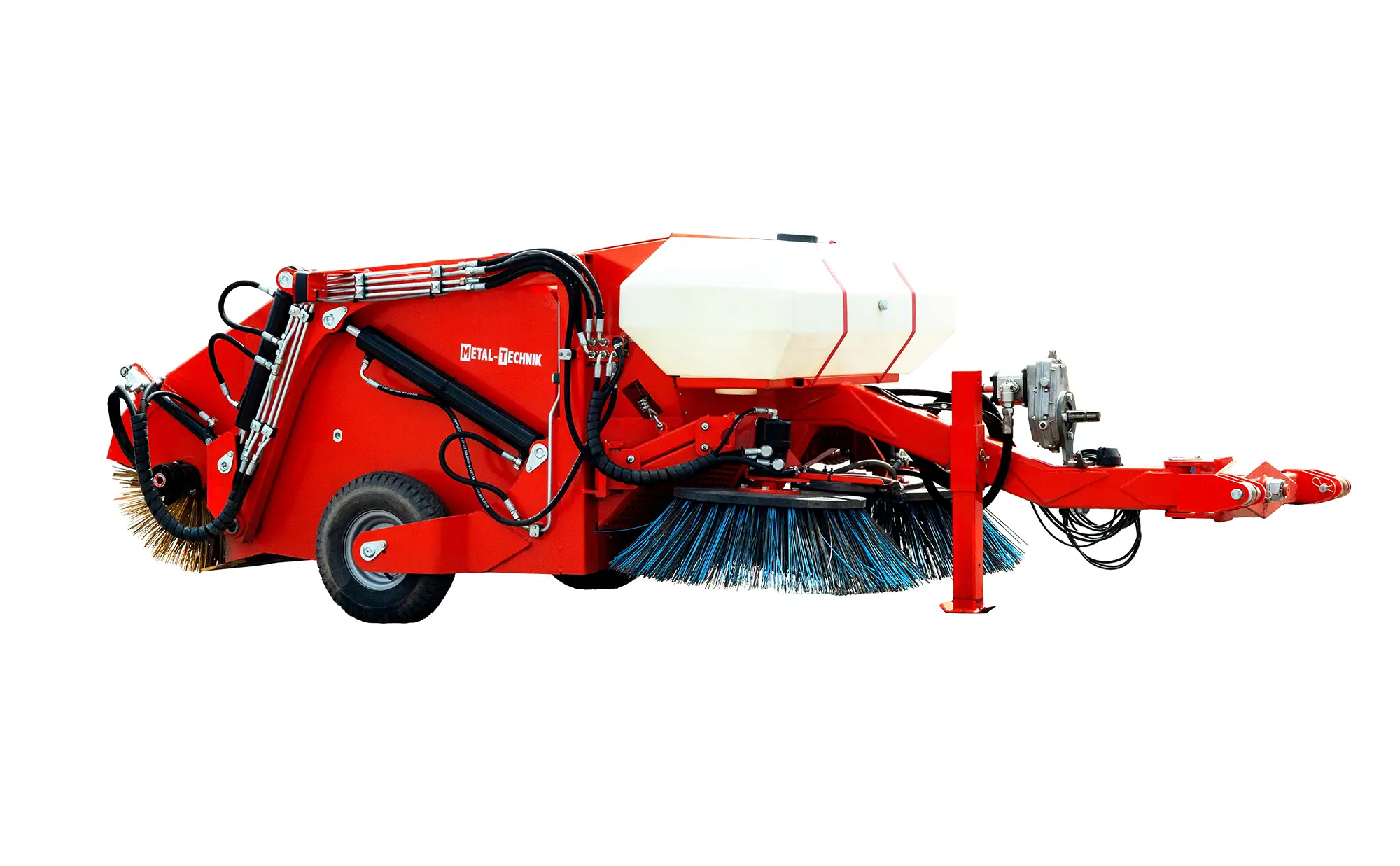

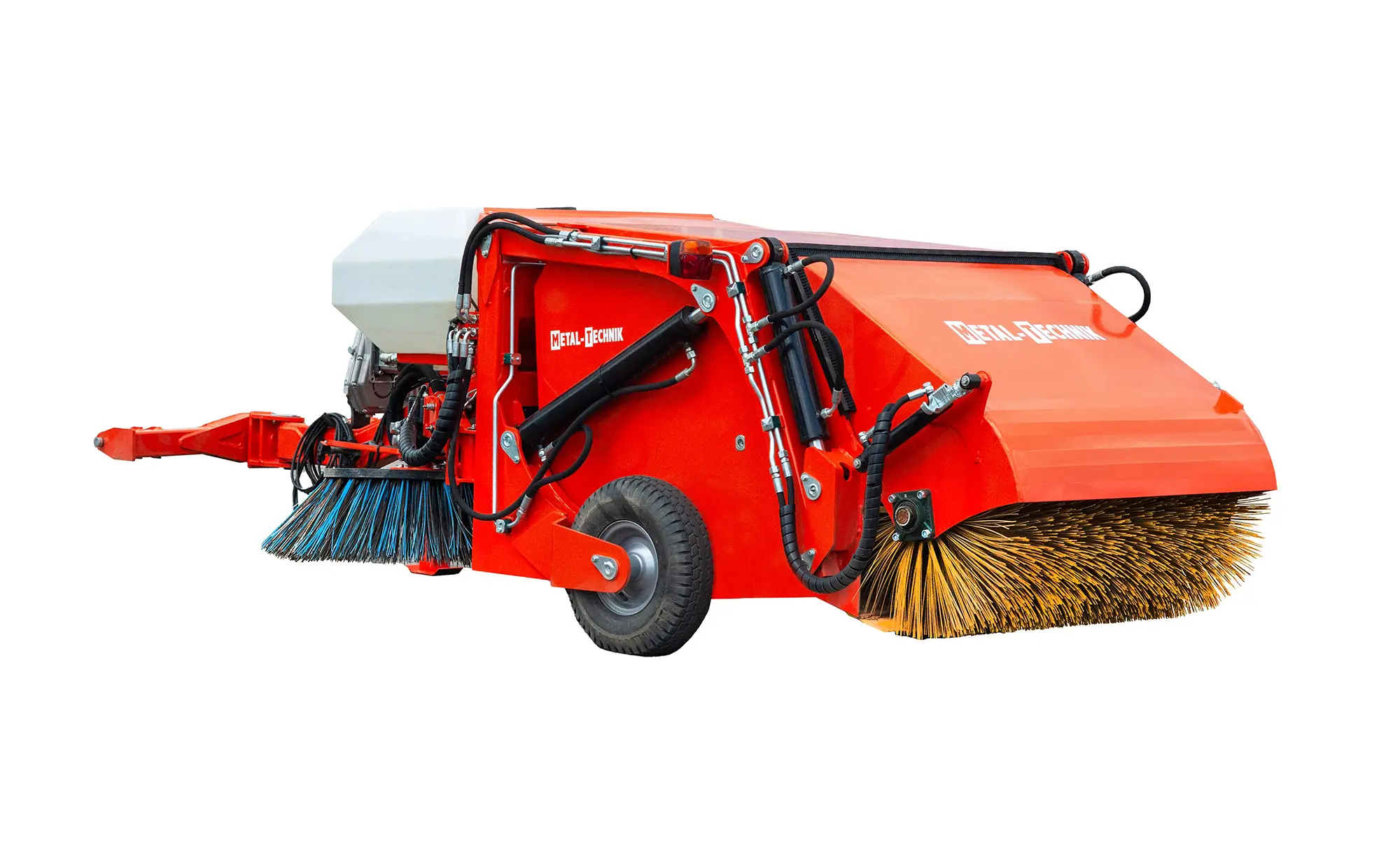

The MT1 municipal sweeper is designed for sweeping flat surfaces such as streets, sidewalks, and squares.
- It has two disc brushes that scrape material towards the center and a roller brush that sweeps it into the tank.
- The machine combines compact dimensions with great capabilities.
- Hydraulically folding disc brushes make it easy to deploy and fold the machine without leaving the tractor. Folding inwards reduces the width of the sweeper, so when folded it is only 1.7m wide (working position is 2.4m).

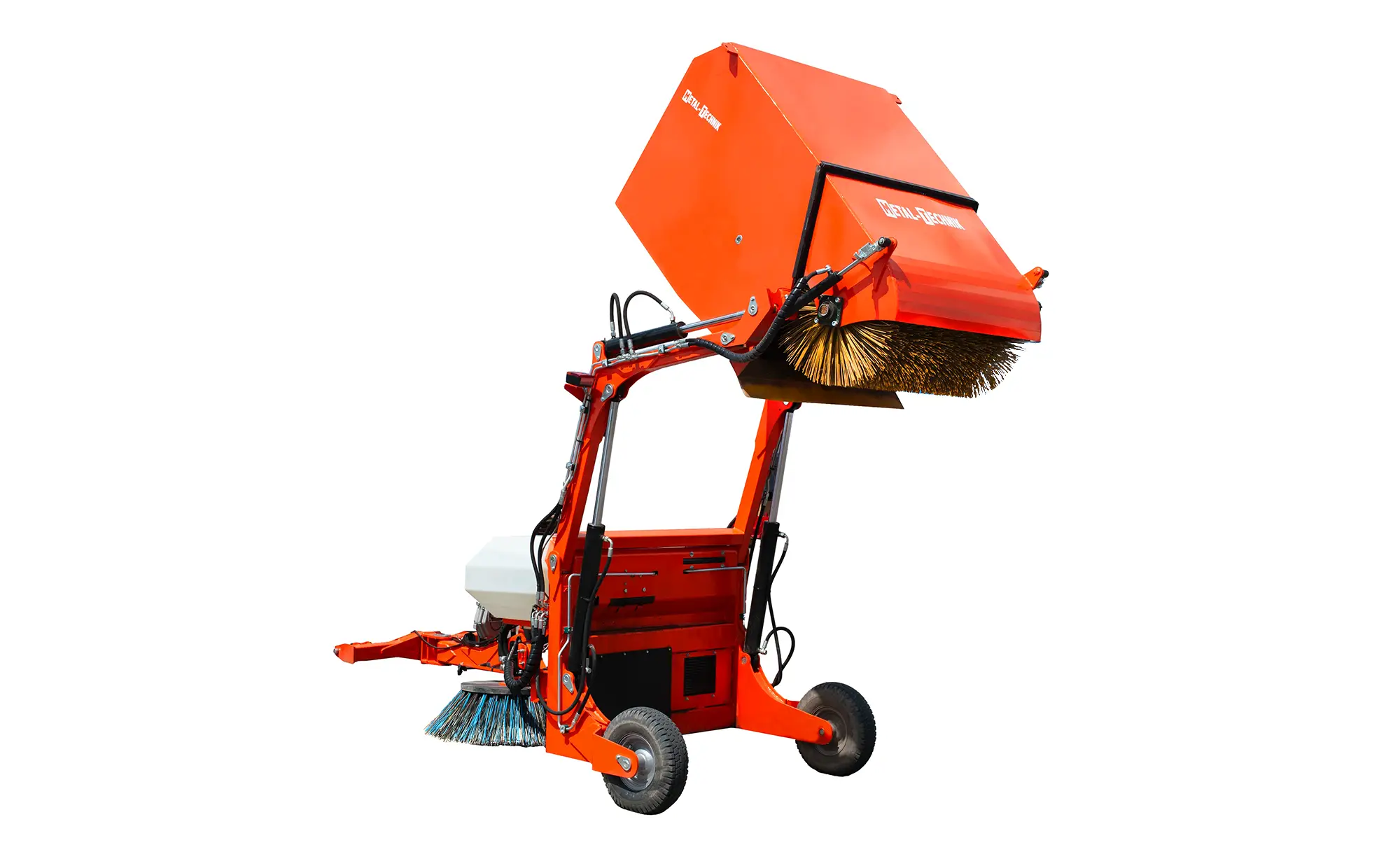

- The large garbage container allows for continuous operation without unnecessary downtime, and the high discharge allows for emptying it directly onto a trailer.
- The sweeper has its own hydraulic system. Thanks to its own pump driven by the PTO, it is ideally suited for cooperation with small tractors from 28 HP.
- Additionally, the oil cooler guarantees trouble-free operation of the machine even on hot days. Machine control is handled by an easy-to-use controller located in the cabin.
The sweeper is equipped as standard with lighting, a warning lamp, and a sprinkling system. It is an ideal choice for sweeping large areas using small tractors, effectively utilizing their potential.
The MT1 municipal sweeper is designed for sweeping flat surfaces such as streets, sidewalks, and squares.
- It has two disc brushes that scrape material towards the center and a roller brush that sweeps it into the tank.
- The machine combines compact dimensions with great capabilities.
- Hydraulically folding disc brushes make it easy to deploy and fold the machine without leaving the tractor. Folding inwards reduces the width of the sweeper, so when folded it is only 1.7m wide (working position is 2.4m).
- The large garbage container allows for continuous operation without unnecessary downtime, and the high discharge allows for emptying it directly onto a trailer.
- The sweeper has its own hydraulic system. Thanks to its own pump driven by the PTO, it is ideally suited for cooperation with small tractors from 28 HP.
- Additionally, the oil cooler guarantees trouble-free operation of the machine even on hot days. Machine control is handled by an easy-to-use controller located in the cabin.
The sweeper is equipped as standard with lighting, a warning lamp, and a sprinkling system. It is an ideal choice for sweeping large areas using small tractors, effectively utilizing their potential.
Show more description
MT1 Municipal Sweeper Parameters
| Model → | Municipal Sweeper MT1 |
|---|---|
| Water tank capacity [l] | 200 |
| Trash can capacity [l] | 700 |
| Discharge height of tank [m] | 1,8 |
| Disc brush diameter [mm] | 900 |
| Roller brush diameter [mm] | 600 |
| Roller brush length [mm] | 1000 |
| Tractor power | Minimum 28, maximum 80 |
| PTO Speed [rpm] | 540 |
| Hydraulic tank capacity [l] | 40 |
| Shipping dimensions [L/W/H] [mm] | 3600/1700/1150 |
| Sweeper mass [kg] | 850 |
| Electrical installation voltage [V] | 12 |
| Operating speed [km/h] | 12 |
| Transport speed [km/h] | 25 |
Standard equipment
- Three-point hitch Category 1 large and 2
- PTO 540 RPM
- Own hydraulic system – folding of disc brushes and trash ejection
- Lighting
- Warning light
- Sprinkler system
