municipal machine
Separator OD
Manufacturer: Metal-Technik

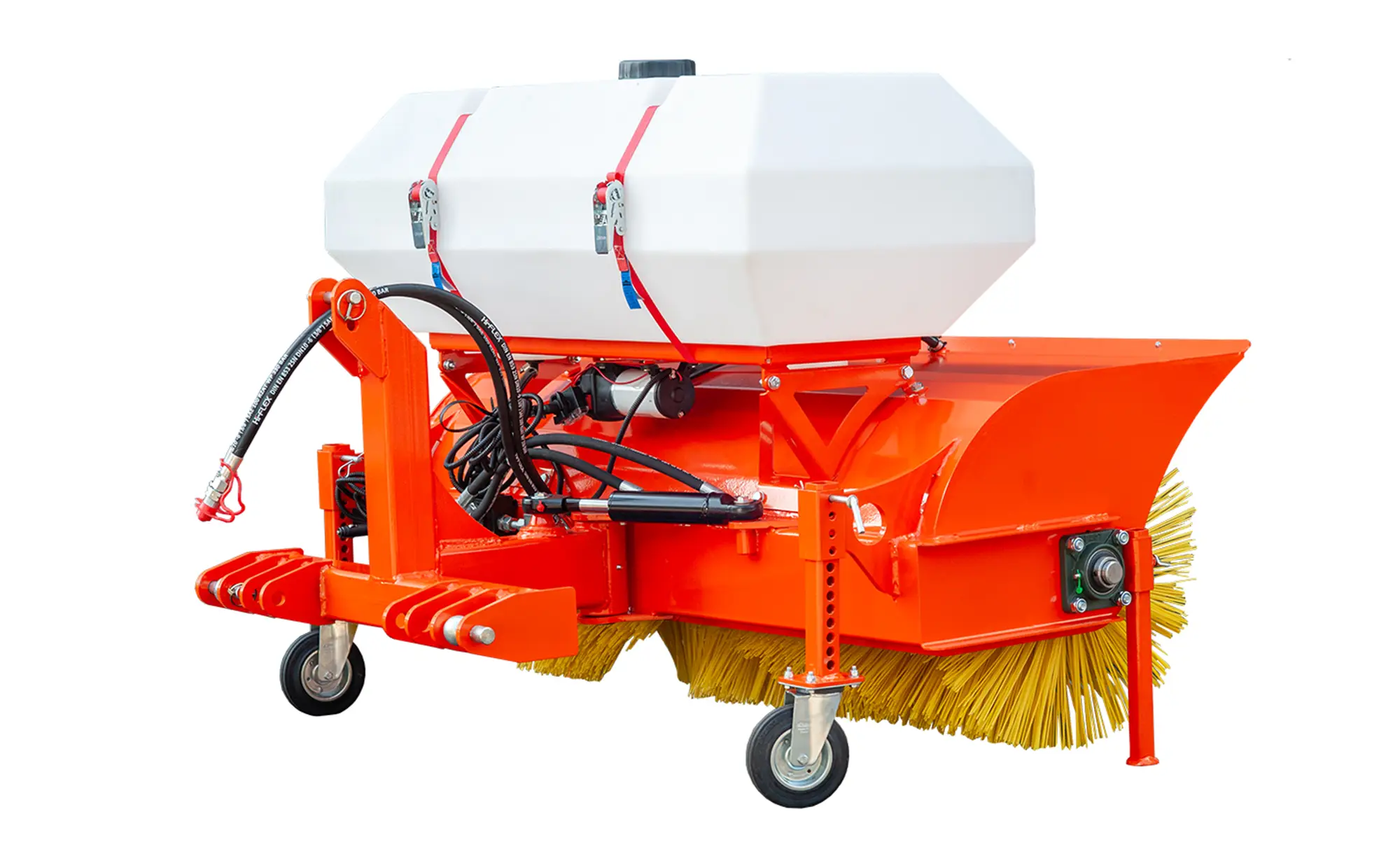

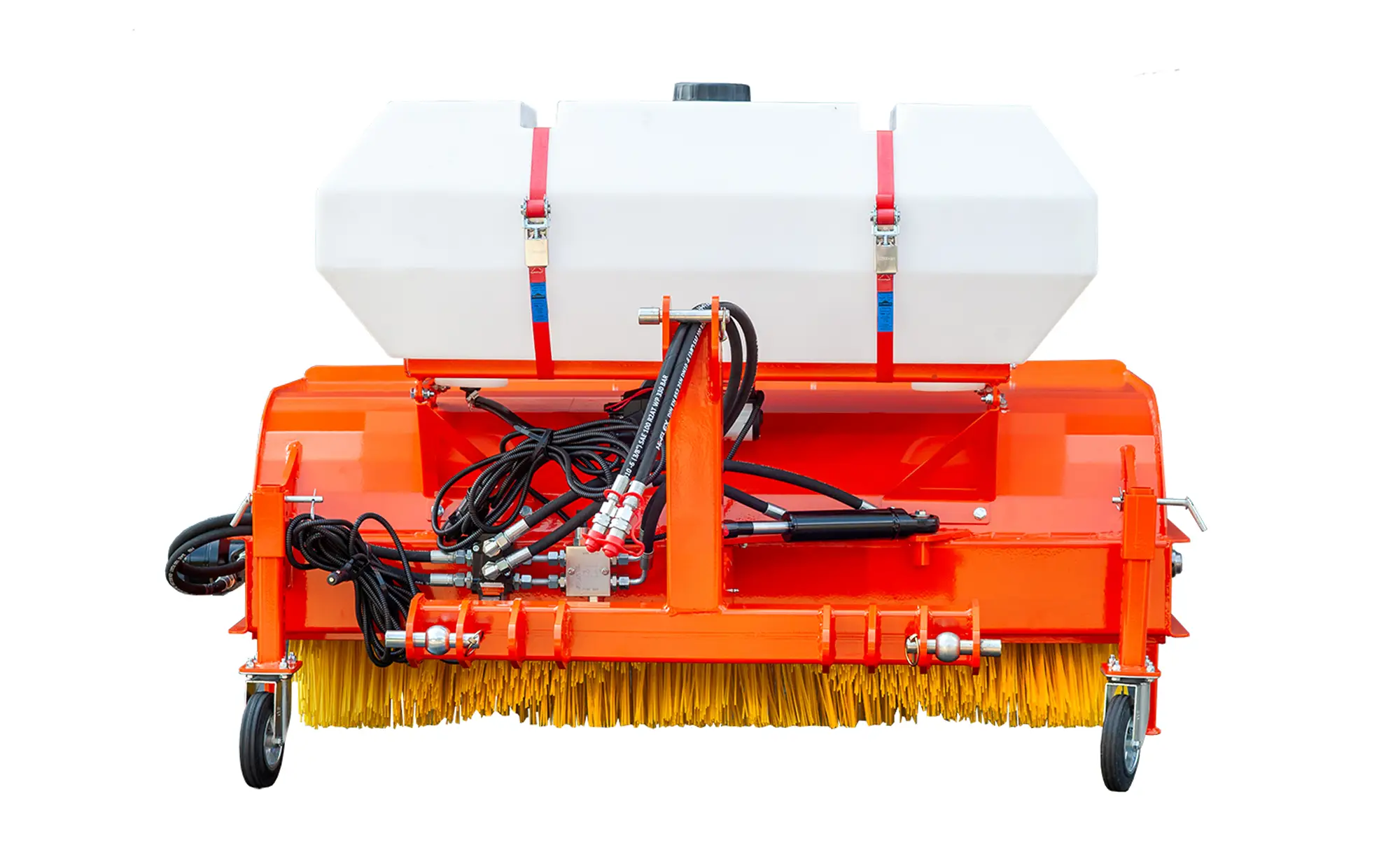

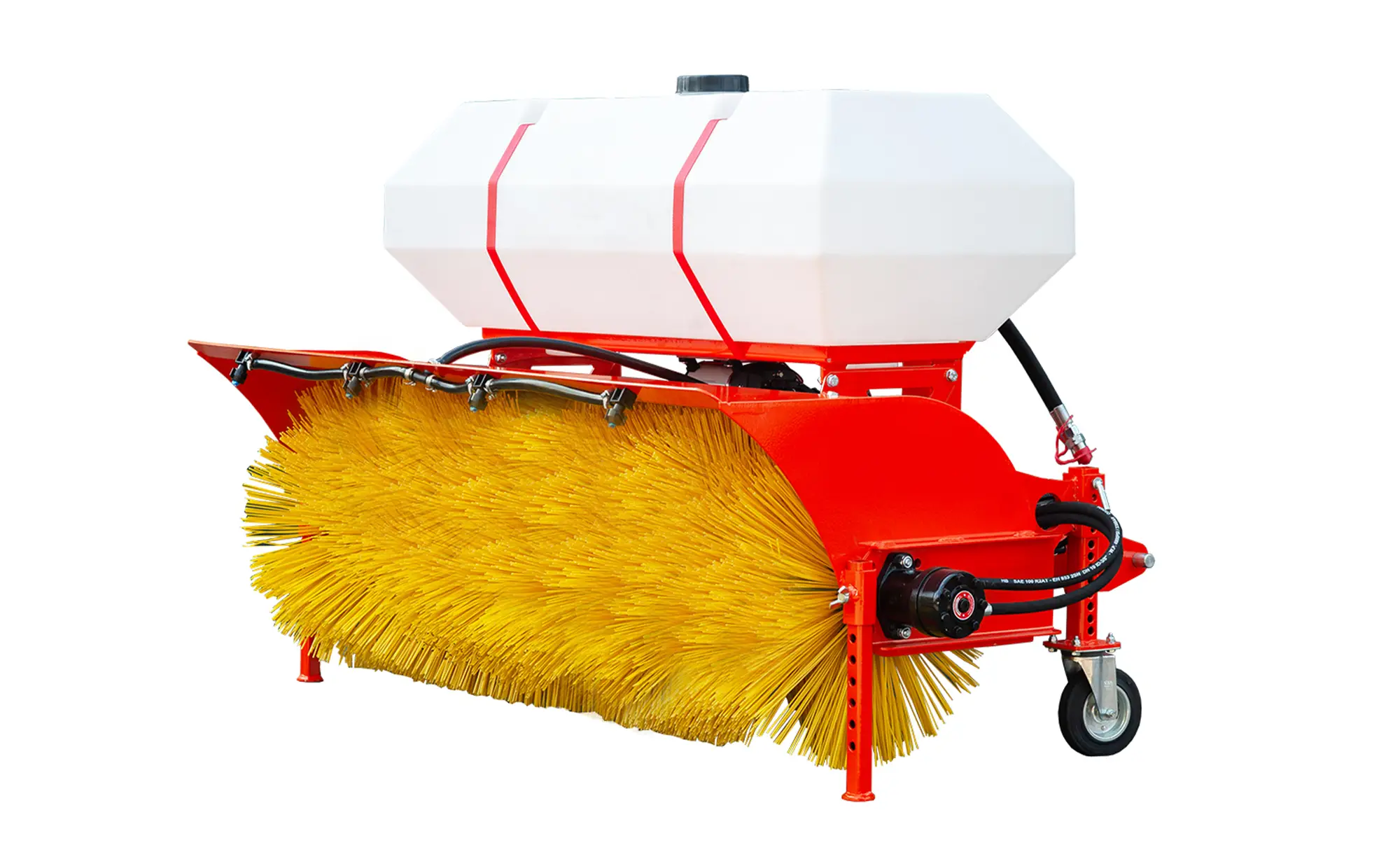

The sweeper is used to clean flat surfaces such as squares, sidewalks, and roads by sweeping debris to the side or pushing it forward. The sweeper is positioned at an angle to the direction of travel using a hydraulic system. The sweeper is used to clean flat surfaces such as squares, sidewalks, and roads by sweeping debris to the side or pushing it forward. The sweeper is positioned at an angle to the direction of travel using a hydraulic system.
The sweeper does not have a waste bin. It is ideal for cleaning hardened surfaces that connect to unhardened surfaces where the swept material (sand, leaves, etc.) can return to the unhardened surface.
When sweeping such areas, there is no need to empty the bin or prepare a place for waste storage.
The sweeper is also suitable for clearing hardened surfaces of snow.
It will be an excellent choice for surfaces with minor irregularities (damaged concrete) where the plow will leave areas unshoveled.
The machine can be equipped with a dust suppression system, activated from an easy-to-use panel.
Attention:
The sweeper is equipped with a standard brush
The sweeper is used to clean flat surfaces such as squares, sidewalks, and roads by sweeping debris to the side or pushing it forward. The sweeper is positioned at an angle to the direction of travel using a hydraulic system. The sweeper is used to clean flat surfaces such as squares, sidewalks, and roads by sweeping debris to the side or pushing it forward. The sweeper is positioned at an angle to the direction of travel using a hydraulic system.
The sweeper does not have a waste bin. It is ideal for cleaning hardened surfaces that connect to unhardened surfaces where the swept material (sand, leaves, etc.) can return to the unhardened surface.
When sweeping such areas, there is no need to empty the bin or prepare a place for waste storage.
The sweeper is also suitable for clearing hardened surfaces of snow.
It will be an excellent choice for surfaces with minor irregularities (damaged concrete) where the plow will leave areas unshoveled.
The machine can be equipped with a dust suppression system, activated from an easy-to-use panel.
Attention:
The sweeper is equipped with a standard brush
OD Demultiplexer Models
Comparison of OD-Sweeper Model Parameters
| Model → | OD-1200 | OD-1400 | OD-1600 | OD-1800 | OD-2000 |
|---|---|---|---|---|---|
| Sweeping width [mm] | 1200 | 1400 | 1600 | 1800 | 2000 |
| Roller brush diameter [mm] | 600 | 600 | 600 | 600 | 600 |
| Roller brush length [mm] | 1200 | 1400 | 1600 | 1800 | 2000 |
| Water tank capacity [l] | 200 | 200 | 200 | 200 | 200 |
| Tractor power [HP] | 26 - 60 | 26 - 60 | 26 - 60 | 26 - 60 | 26 - 60 |
| Machine weight (3-point hitch mount Cat. 1) [kg] | 152 | 164 | 177 | 190 | 202 |
| Machine weight (three-point hitch attachment, municipal category) [kg] | 137 | 149 | 162 | 175 | 203 |
| Machine weight (EURO attachment) [kg] | 166 | 178 | 191 | 203 | 216 |
Standard equipment
- The sweeper is equipped with a standard brush
Optional equipment
- Option to equip with a dust suppression sprinkling system, activated from a user-friendly control panel
