Other machines and accessories

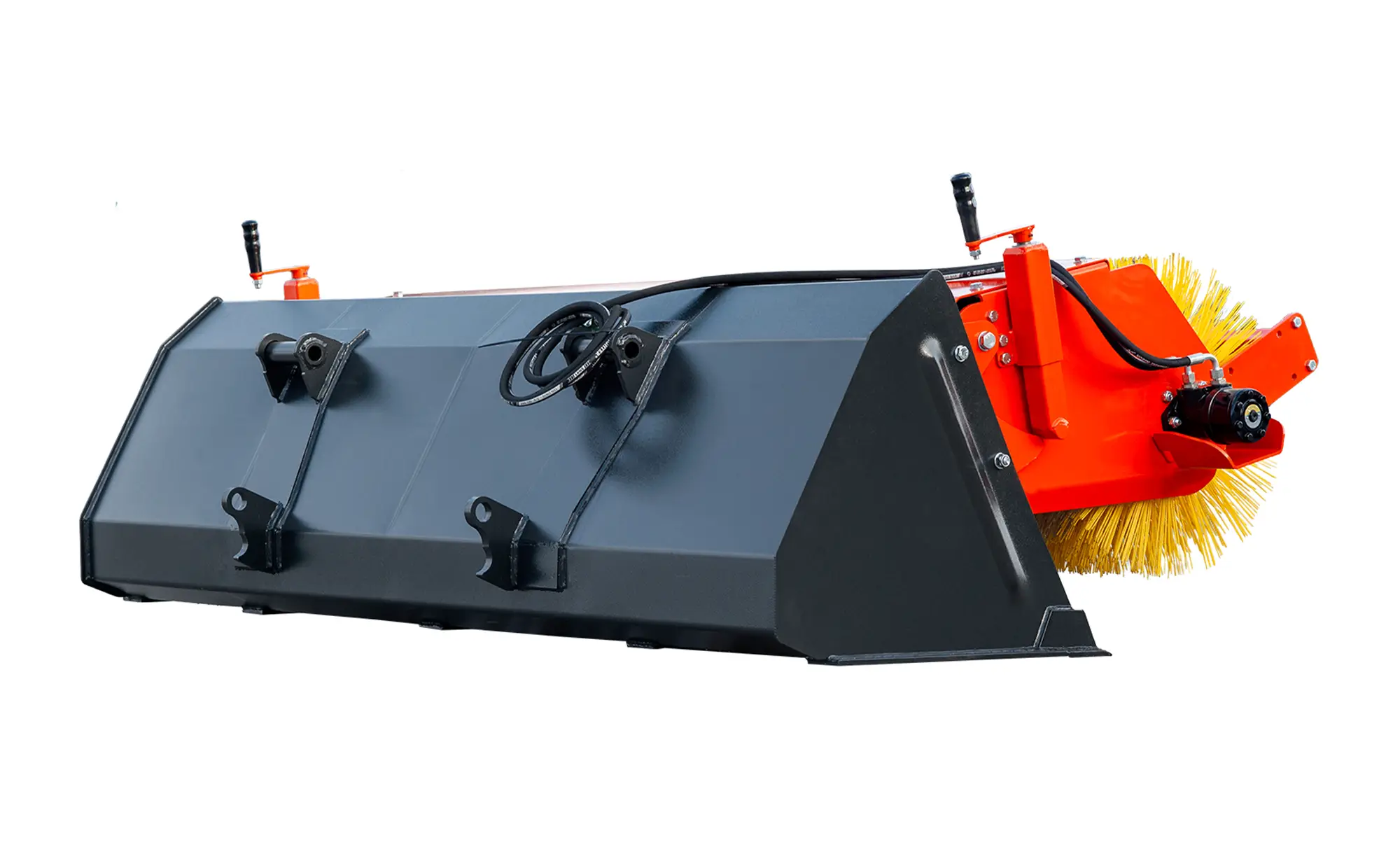

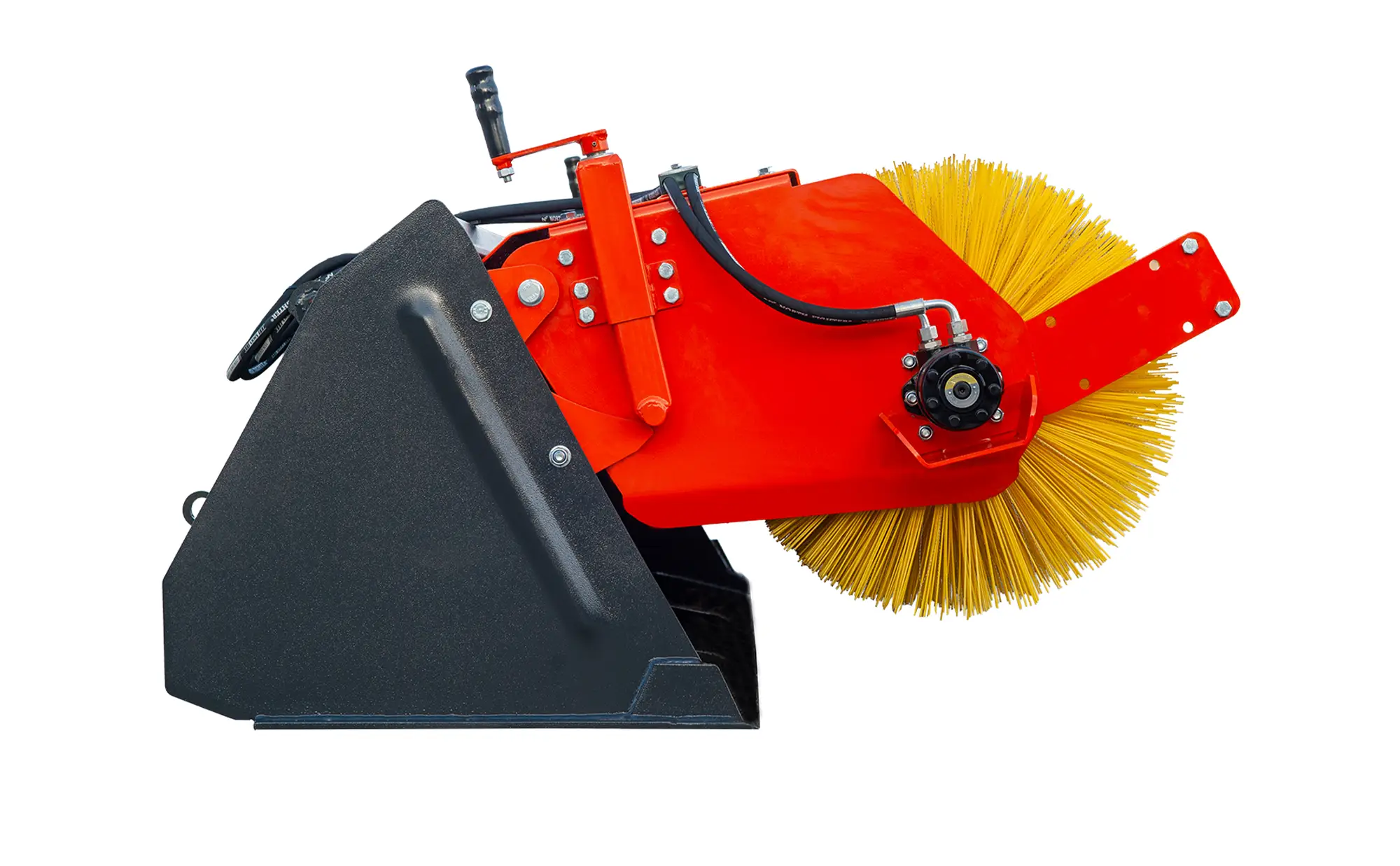

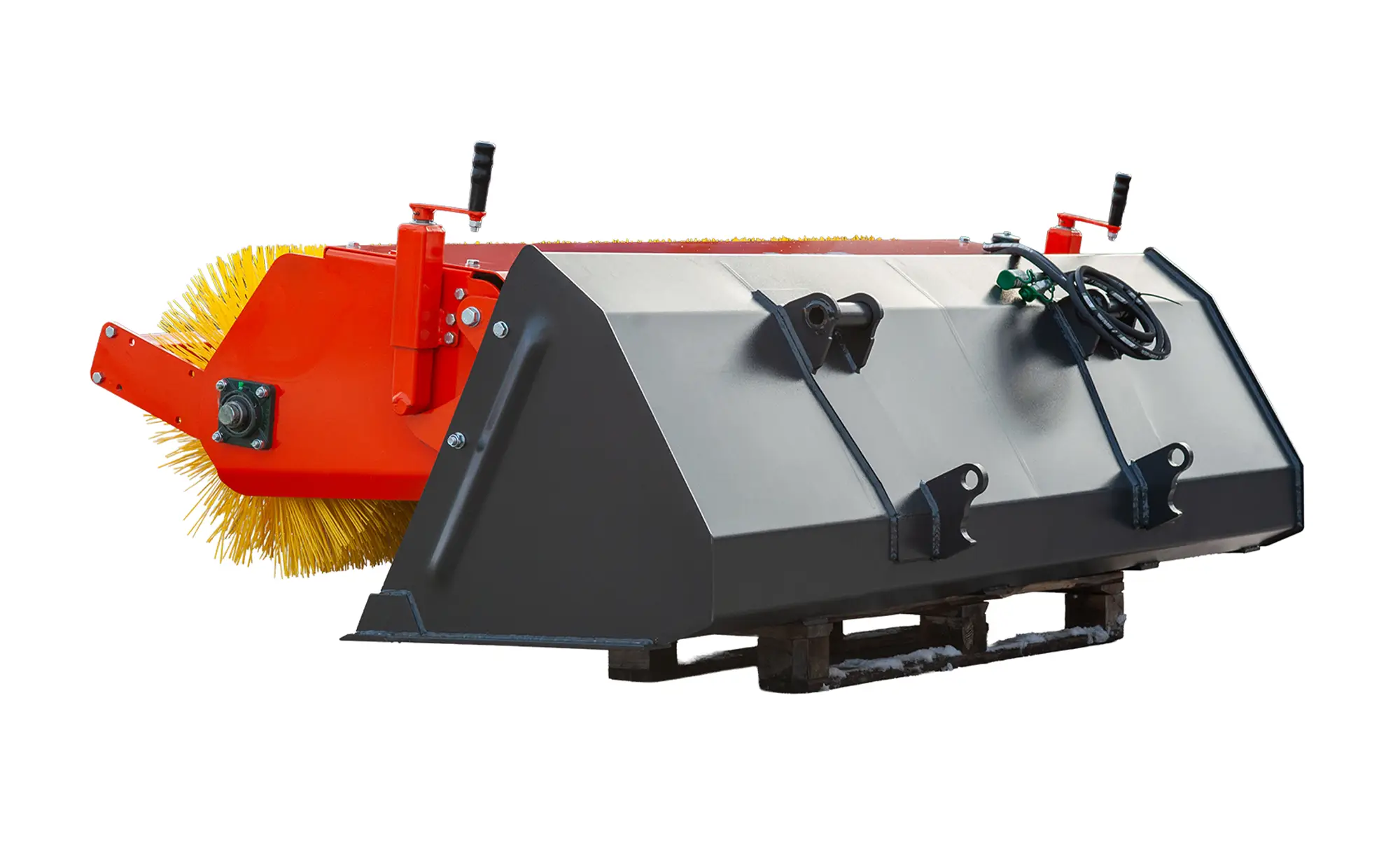

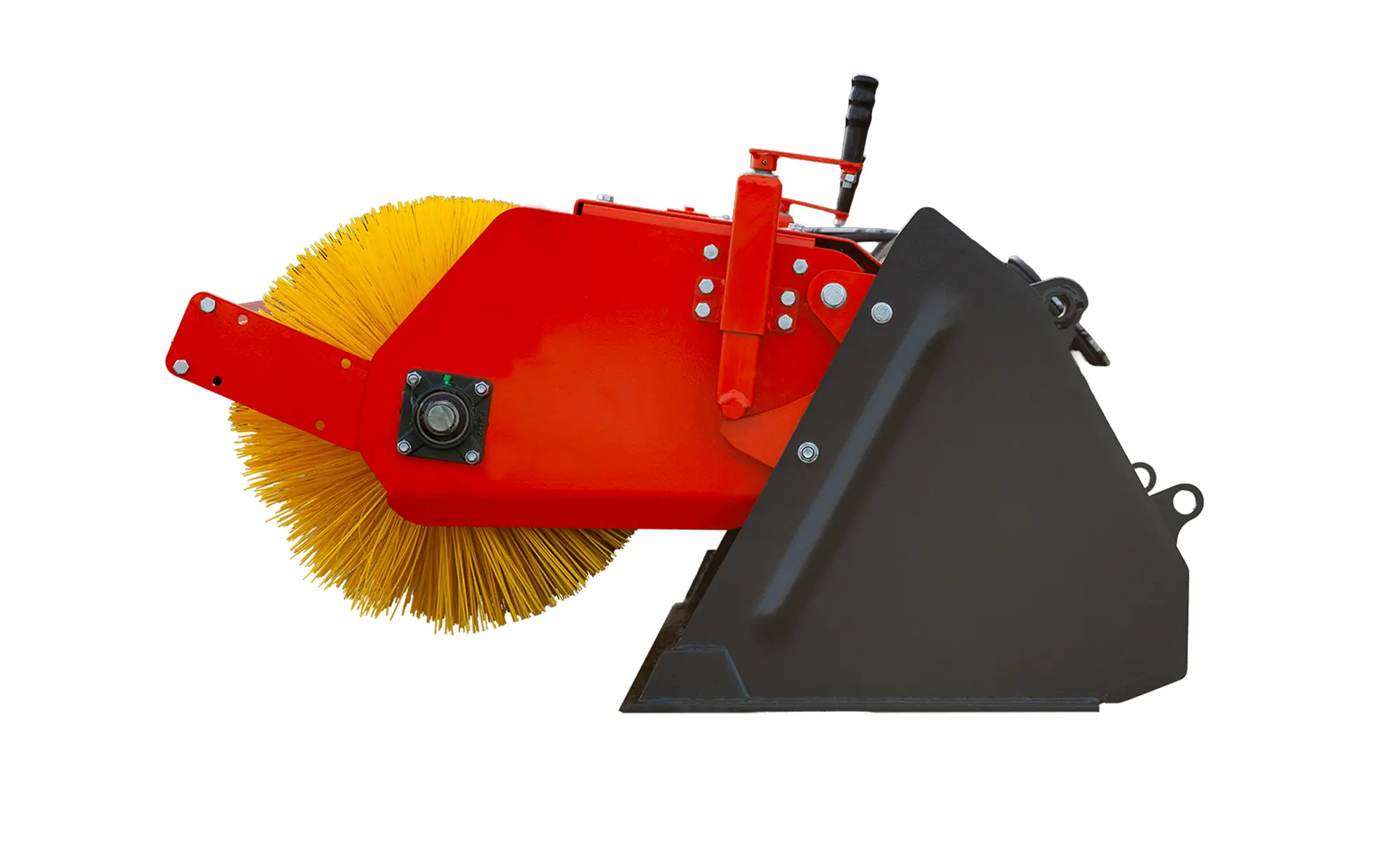

Spoon with a sweeper
LZ.ZA-1400 / LZ.ZA-1600 / LZ.ZA-1800 / LZ.ZA-2000 / LZ.ZA-2200 / LZ.ZA-2400
Manufacturer: Metal-Technik
Spoon with a sweeper
- Spoon with sweeper compatible with notched spoon
- Standard EURO mounting
- Possibility of purchasing the sweeper only (without the serrated bucket)
Spoon with a sweeper
- Spoon with sweeper compatible with notched spoon
- Standard EURO mounting
- Possibility of purchasing the sweeper only (without the serrated bucket)
Show more description
Sweeper Spoon Models
Technical Parameters of Sweeper Bucket Models
| Model | LZ.ZA-1400 | LZ.ZA-1600 | LZ.ZA-1800 | LZ.ZA-2000 | LZ.ZA-2200 | LZ.ZA-2400 |
|---|---|---|---|---|---|---|
| Brush width [mm] | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 |
| Total width [mm] | 1520 | 1720 | 1920 | 2120 | 2320 | 2520 |
| Length [mm] | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Height [mm] | 840 | 840 | 840 | 840 | 840 | 840 |
| Roller brush diameter [kg] | 600 | 600 | 600 | 600 | 600 | 600 |
| Spoon capacity [m³] | 0,35 | 0,4 | 0,45 | 0,5 | 0,55 | 0,6 |
| Machine mass [kg] | 250 | 271 | 302 | 320 | 348 | 375 |
| Hydraulic system pressure [MPa] | 18 | 18 | 18 | 18 | 18 | 18 |
Standard equipment
- Compatible with fluted spoon
- Standard EURO mount)
